Made of stainless steel, any surface in contact with water, ice is resistant to corrosion.
The stainless steel ice cutter is driven by a rotating motor and can produce cylindrical ice and crushed ice. This function can be realized by pressing the corresponding button of the controller and the motor will be reversed.
An automatic control system is more convenient to operate the machine to solve the fault

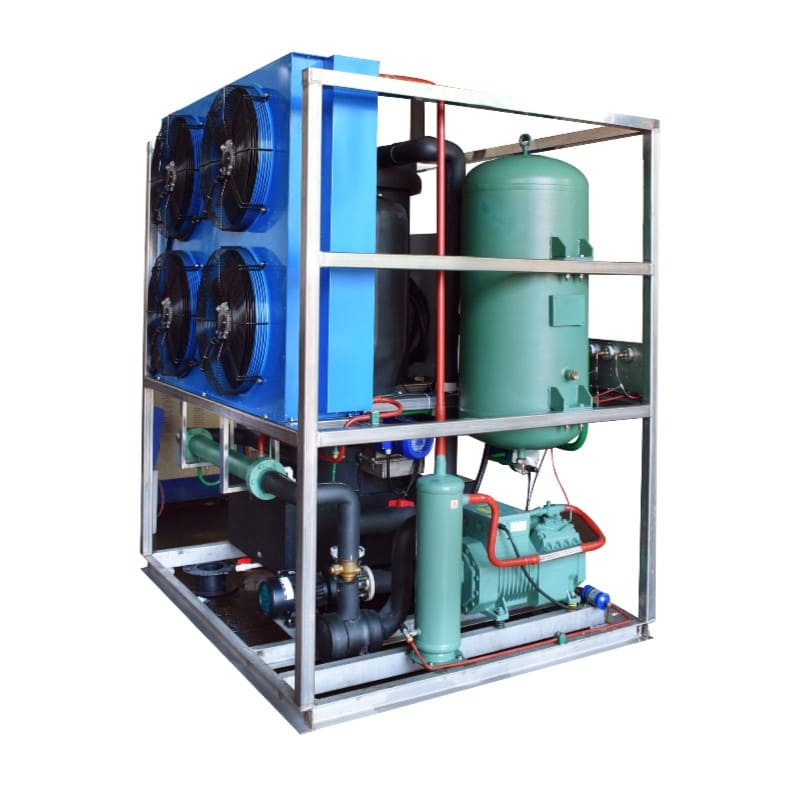

| Model | Daily Output (KG/24H) | Ref. Capacity (kw) | Input Power (kw) | Ice Diameter (mm) | Whole/Split Unit | Unit Dimension (mm) | Unit Weight (KG) |
|---|---|---|---|---|---|---|---|
| HT1T | 1000 | 8 | 5 | ø22, ø29, ø35 | whole | 1435×1250×2450 | 780 |
| HT2T | 2000 | 13 | 9.6 | ø22, ø29, ø35 | whole | 1600×1350×2450 | 1360 |
| HT3T | 3000 | 18 | 13.5 | ø22, ø29, ø35 | whole | 1900×1450×2450 | 1850 |
| HT5T | 5000 | 30 | 21 | ø22, ø29, ø35 | whole | 2000×1500×2450 | 2460 |
| HT10T | 10000 | 60 | 42 | ø22, ø29, ø35 | Split | Evaporator:1500×1500×3300 Unit: 3000×1800×2200 | 2100 1800 |
| HT15T | 15000 | 90 | 60 | ø22, ø29, ø35 | Split | Evaporator:1600×1600×3900 Unit: 3000×1800×2200 | 2900 2200 |
| HT20T | 20000 | 120 | 90 | ø22, ø29, ø35 | Split | Evaporator:1650×1650×4300 Unit: 2800×2100×2550 | 3300 2500 |
| HT30T | 30000 | 180 | 135 | ø22, ø29, ø35 | Split | Evaporator:1900×1900×6200 Unit: 3500×2250×2550 | 4000 2900 |

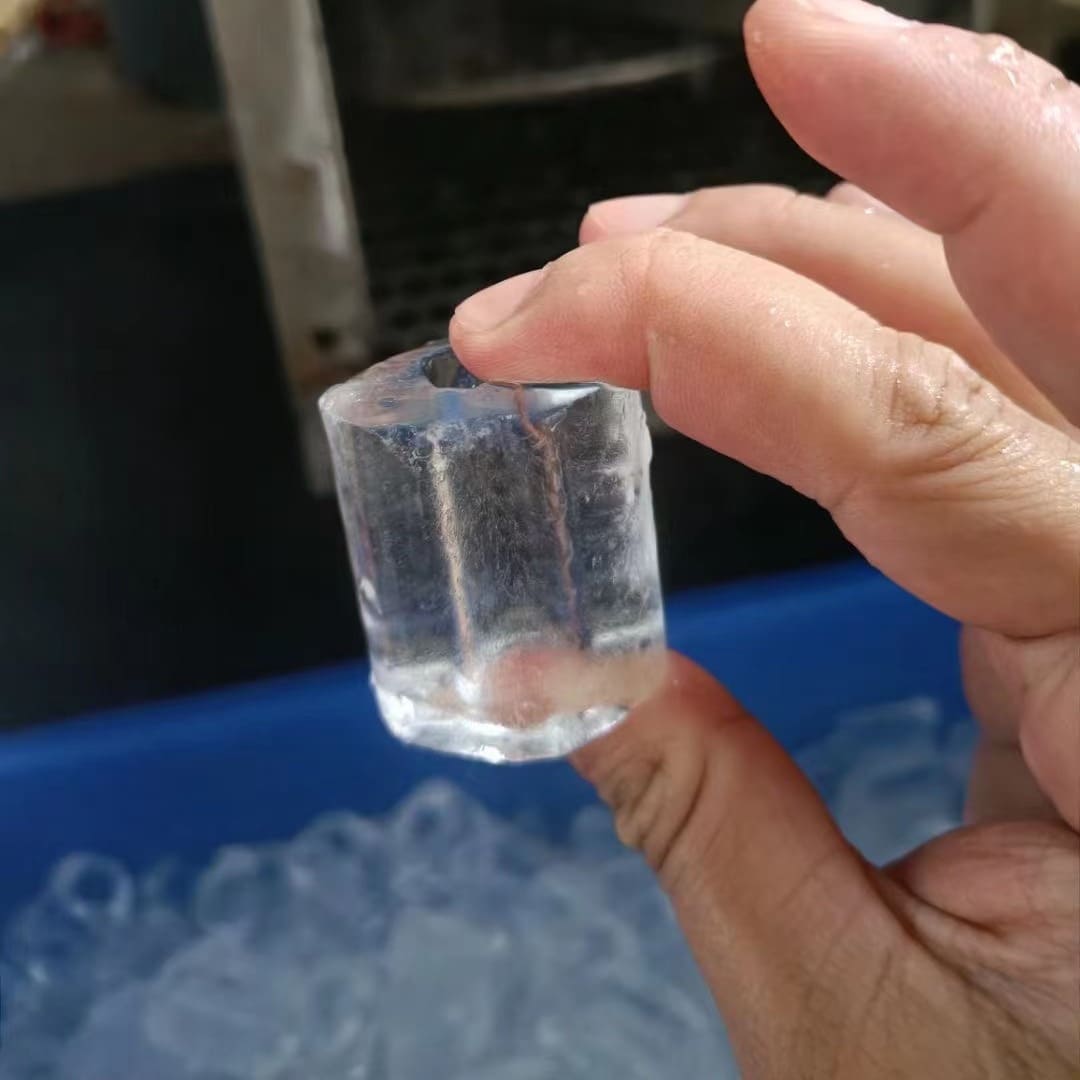

The tube ice is formed in the evaporator of the tube ice machine, and the water flows along the inner wall of the evaporator to exchange heat with the refrigerant and cool down;
when the tube ice falls, the ice-cutting mechanism operates to cut the tube ice into a set size, and The length of the ice can reach 50mm, and the outer diameter can be divided into Φ22mm, Φ29mm, Φ32mm, Φ35mm and other specifications.
The diameter of the inner hole can be adjusted according to the ice-making time, generally between 5-10mm; when the thickness of the tube ice reaches the desired value When the water stops flowing automatically.
If the tube ice needs to be used directly after production, Hiceay has supporting tube ice conveying equipment, such as screw conveyors, crawler conveyors, etc., which can transport the ice to the ice-using place or container.
If the tube ice is not used directly after production, it can be directly stacked in the ice storage, or it can be bagged and stored in the ice storage; Hiceay has a matching automatic bagging machine for tube ice that needs to be bagged and stored. customer choice
