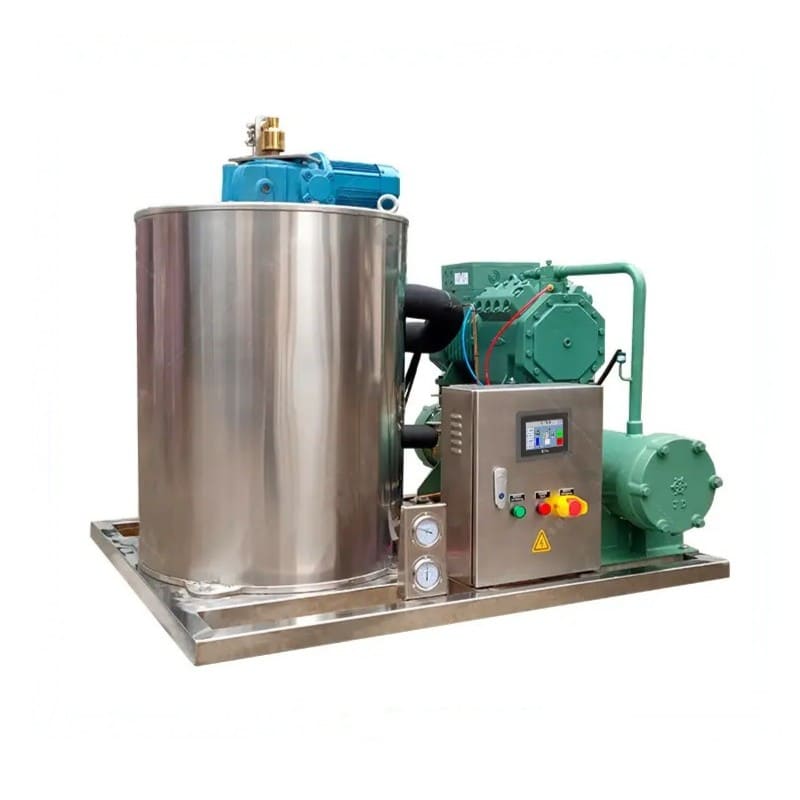

flake ice machine for fishery boat

PREMIUM Flake Ice Machine – High Capacity, Energy-Efficient for Fishery

The unit boasts an impressive production capacity, making it ideal for commercial applications, large events, or busy restaurants. Its energy-efficient operation saves on utility costs while maintaining the highest performance levels.

The flake ice machine has a robust design, ensuring long-lasting durability and resistance against harsh conditions common in commercial environments.

Additional information

Daily output

3T/24h

Refrigerant

R404a

Cooling Mode

Water cooling

Power supply

3P/380V/50Hz

Total Power

15.3kw

  • Installed directly on fishing boats, seawater ice making
  • Adopt GEA Blog piston compressor imported from Germany, suitable for ships with deep oil storage tanks
  • The motor part is designed with positioning pins, which can be replaced and maintained on-site, and the operation is simple.
  • Automatic protection for power failure, water shortage, ice full, high and low pressure, compressor overheating
  • HIGH CAPACITY: Manufactures a large amount of flake ice, ideal for fisheries, seafood businesses, and large events.
  • ENERGY EFFICIENT: Operates with minimal power, reducing utility costs while maintaining top-tier performance.
  • DURABLE DESIGN: Crafted for longevity, withstanding harsh conditions prevalent in commercial environments.
  • USER FRIENDLY: Intuitive controls and easy maintenance features for hassle-free operation.
  • SUPERIOR COOLING: Creates optimal ice flakes for rapid, effective cooling and attractive food presentation.
  • SELF-CLEANING: Incorporated self-cleaning function for optimal hygiene and convenience.
  • ADVANCED TECHNOLOGY: Utilizes the latest refrigeration technology for high-quality, efficient ice production.



ModelDaily Output
(KG/24H)
Ref. Capacity
(kw)
Total Power
(kw)
Power SupplyRefrigerantCooling ModeUnit Dimension
L×W×H
(mm)
Unit N.W
(KG)
H1TS10007.56.53P/380V/50HzR404AWater Cooling1250×890×1005256
H2TS200014.811.53P/380V/50HzR404AWater Cooling1350×1240×1150455
H3TS300022.315.33P/380V/50HzR404AWater Cooling1350×1240×1300550
H4TS400029.221.83P/380V/50HzR404AWater Cooling1700×1550×1570715
H5TS500036.523.93P/380V/50HzR404AWater Cooling1700×1550×1710780
H8TS800058.432.23P/380V/50HzR404AWater Cooling2300×1900×17201100
H10TS100007352.63P/380V/50HzR404AWater Cooling2800×1900×18801680
H15TS15000109.568.83P/380V/50HzR404AWater Cooling3500×2150×19202080
H20TS2000014681.53P/380V/50HzR404AWater Cooling3500×2150×22403160
  • The fully automatic seawater flake ice machine provided by Hiceay is installed on the ocean fishing boat, and the seawater is extracted as the ice-making water. The fishing boat can make ice while fishing, and make ice at any time, saving time, labor, and financial costs.
  • Ice-making capacity from 1T/24h-30T/24h
  • IP66/IP65 high protection grade junction box, terminal; raised silicone insulation treatment terminal, effectively avoiding short circuit
  • The motor part is designed with positioning pins, which can be replaced and repaired on-site. The operation is simple, and no special tools are required to assemble or return to the factory for repair.
  • Equipped with a unique MP10 or INT69G built-in protection module as standard, with motor overheat protection, high exhaust temperature protection, and LED indicator light alarm function
  • All stainless steel electric box shell, corrosion-resistant design of seawater and sea wind, better protection for the electrical inside the electric box
  • The ice produced by the seawater flake ice machine is irregular flakes, and the laminated ice can wrap seafood products well without crushing them. better freshness

Remark:

  • Non-standard customization available upon request
