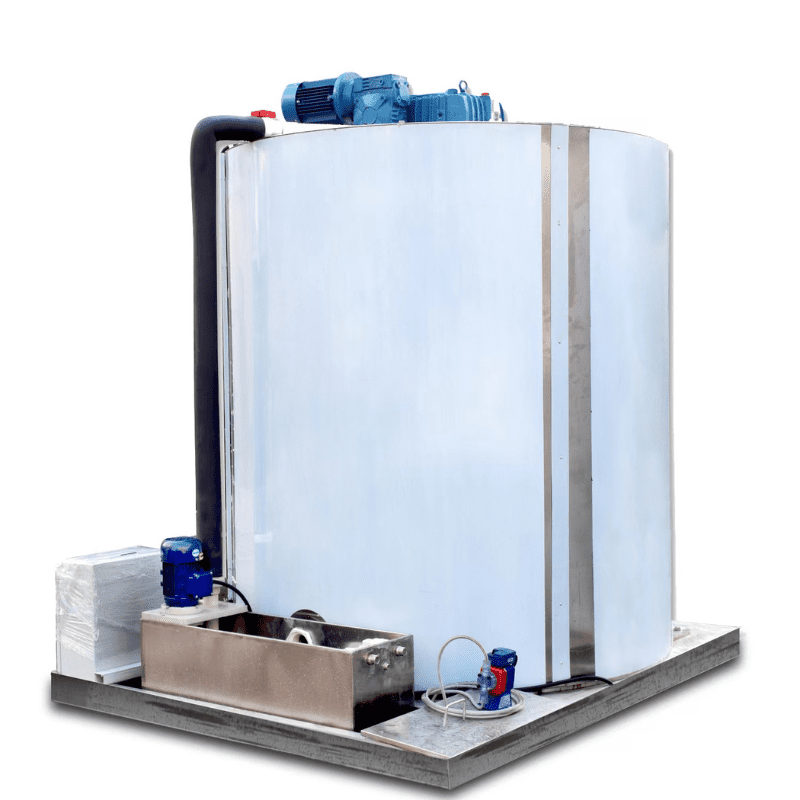

10 Tons flake ice evaporator

Are you looking for a reliable and efficient solution to meet your large-scale ice production needs?

Look no further than our 10 Tons Flake Ice Evaporator. These machines work by using a refrigeration system to freeze water into thin, flaky ice.

This type of ice has a wide range of uses, from cooling down fresh seafood to preserving medical supplies during transport. Evaporators that can produce up to 10 tons of flake ice are ideal for larger businesses or organizations that require a high volume of ice on a regular basis.

With their sturdy construction and advanced refrigeration technology, these ice machines are built to last, ensuring that your ice production needs are met for years to come.



Additional information

  • Internal scraping ice blade, reducing energy consumption and preventing refrigerant leakage
  • Stainless steel material, using mature processing equipment and heat treatment, high heat transfer efficiency
  • Large-area water-receiving tray design to prevent dripping from the bottom of the evaporator
  • The photoelectric switch is directly installed at the bottom of the evaporator, no need to install it in the freezer
  • Direct liquid supply, dry evaporation, simple, safe, and reliable control
  • Integral and modular equipment, convenient for on-site installation and maintenance
  • Hiceay.com 10 Tons Flake Ice Evaporator ensures a steady supply of high-quality flake ice, making it ideal for use in various settings such as restaurants, seafood markets, fishing vessels, and supermarkets.
  • It operates with an energy-efficient refrigeration system, maximizing ice production while minimizing power consumption.
  • With intelligently designed evaporator coils, it offers efficient heat transfer and rapid ice formation. The evaporating temperature can be precisely controlled, allowing customization of ice thickness and achieving desired flake ice consistency.
  • Installation is easy due to its compact design, saving valuable floor space. Equipped with a dependable compressor, it ensures efficiency and durability.
  • Effective defrosting methods prevent ice buildup, reducing downtime.
  • The integrated control system, with temperature and pressure sensors, enables simple monitoring and adjustment for efficient operation and maintaining desired ice production parameters.



ModelDaily Output
(KG/24H)
Ref. Capacity
(KW)
Total Power
(KW)
Power SupplyRefrigerantIce Outlet Size
(mm)
Unit Dimension
L×W×H (mm)
Unit N.W.
(KG)
HE03T3001.80.251P/220V/50HzR22/R404A/R507/E717380×380740×470×66085
HE05T50030.253P/380V/50HzR22/R404A/R507/E717380×380740×470×805115
HE1T100060.253P/380V/50HzR22/R404A/R507/E717380×380740×470×905136
HE1.5T150090.523P/380V/50HzR22/R404A/R507/E717500×500900×580×1005156
HE2T2000120.523P/380V/50HzR22/R404A/R507/E717580×580910×680×1050246
HE3T3000180.523P/380V/50HzR22/R404A/R507/E717580×580910×680×1200324
HE4T4000240.773P/380V/50HzR22/R404A/R507/E717790×7901190×890×1555368
HE5T5000300.773P/380V/50HzR22/R404A/R507/E717790×7901190×890×1645436
HE8T8000521.153P/380V/50HzR22/R404A/R507/E7171170×11701720×1270×1720638
HE10T10000651.153P/380V/50HzR22/R404A/R507/E7171170×11701720×1270×1860795
HE15T1500097.51.153P/380V/50HzR22/R404A/R507/E7171560×15602050×1660×18801265
HE20T200001302.273P/380V/50HzR22/R404A/R507/E7171560×15602050×1660×22001968
HE25T25000162.52.63P/380V/50HzR22/R404A/R507/E7171560×15602050×1660×24602263
HE30T300002103.733P/380V/50HzR22/R404A/R507/E7172000×20002860×2180×24602862
HE40T400003005.23P/380V/50HzR22/R404A/R507/E7172316×23163100×2370×30273120
HE50T500003755.23P/380V/50HzR22/R404A/R507/E7172316×23163100×2370×31273650
HE60T600004505.23P/380V/50HzR22/R404A/R507/E7172420×24203200×2480×31273970



Remark:

  • The evaporator of the flake ice machine includes a reducer, a water supply system (water pump & brine pump) and an ice full probe, etc.
  • If you need a matching expansion valve and control box, please add it when ordering
